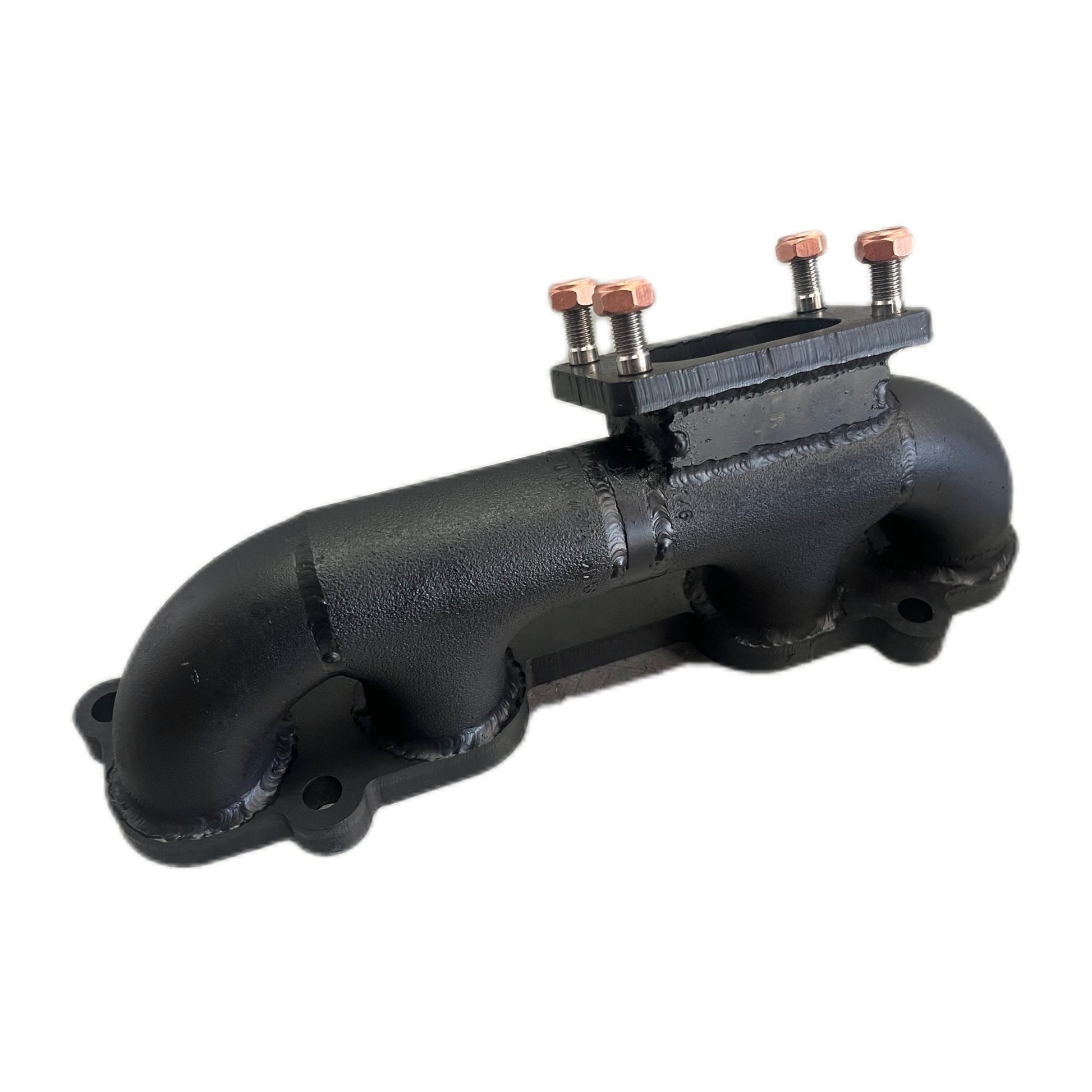

3RZ Log manifold

As used on our workshop ute "Tufflux." For install instructions and performance potential please see 3RZ Turbo Build - Episode 4 - Turbo install and Dyno

Welded from our 3RZ "Do it Yourself" Log manifold – Tuna Racing

16mm laser cut header flange to reduce warping when welded

HD steam pipe bends and tees to create a log style manifold

Laser cut 5mm plate to create a riser to a 10mm laser cut T3 turbo flange

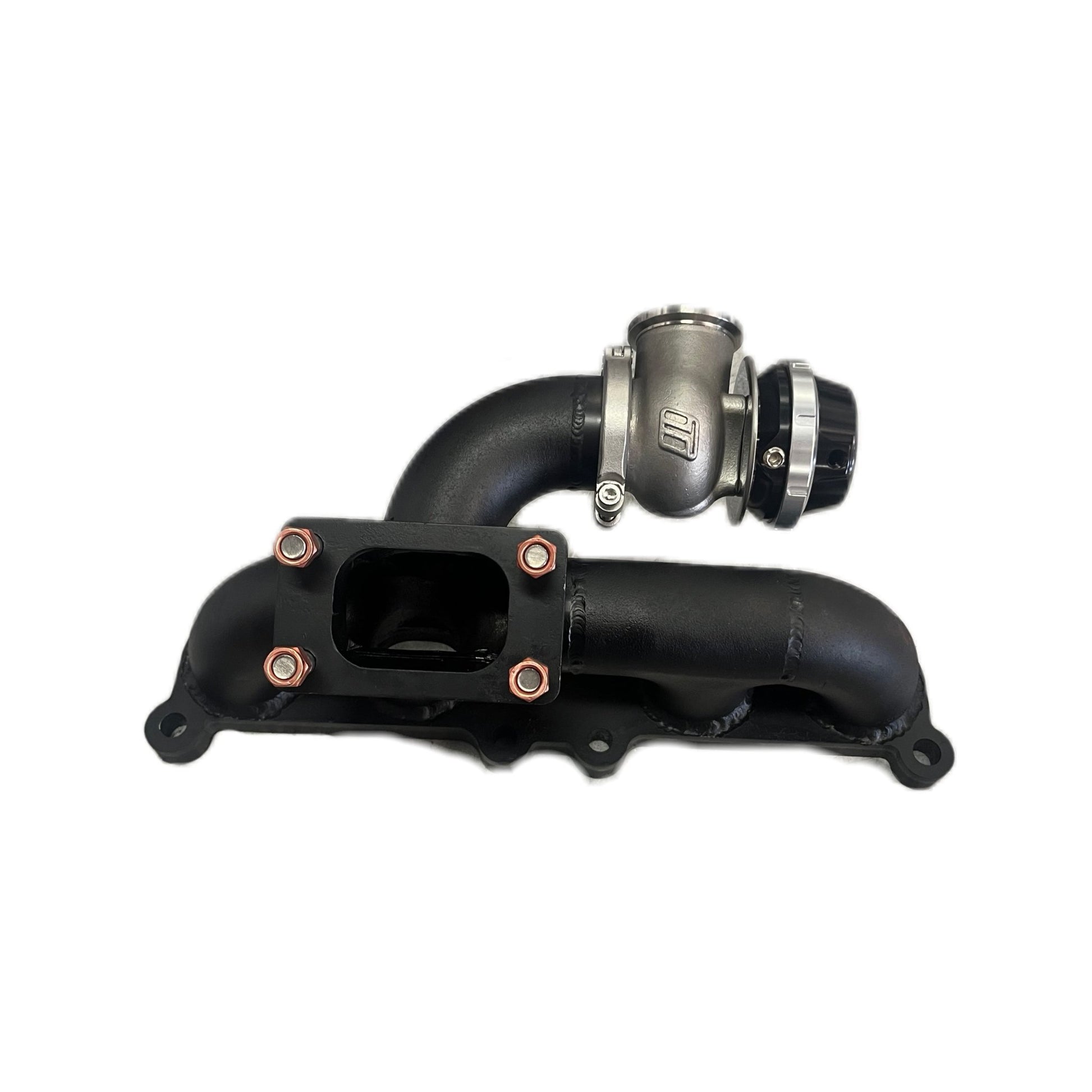

Option for external wastegate (not included) to be fitted to 90 degree steam pipe from bottom of collector and 40mm Turbosmart V band.

PLEASE NOTE: It is highly recommended the dump pipe be solid mounted to a bell housing bolt as per factory and a flex joint fitted in the exhaust to reduce the chance of the manifold cracking.

Lead times may apply.

Sold for Offroad use only.
